Special Vessel

CIMC Raffles has extensive EPC experience in building specialized purpose Vessels, continually delivered CR600 semi-submersible accommodation vessel, Van Oord 30,000t self-unloading fallpipe bulk carrier, United Faith 50,000t semi-sub heavy lift vessel, Lan Jiang 3,800t pipelay and heavy lift vessel, bp QU platform, Dejian Wind Turbine Installation Vessel etc.

Fadein Deep-water Pipe Lay Vessel CASTORONE >

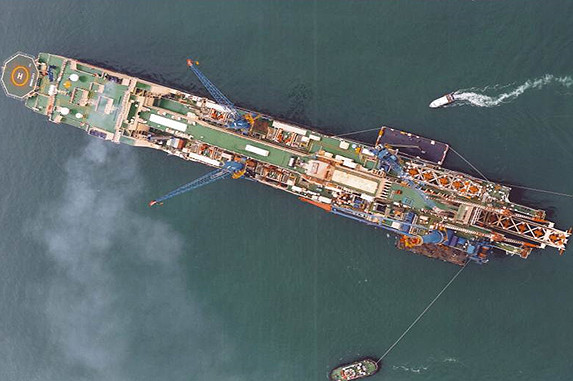

Deep-water Pipe Lay Vessel CASTORONE

Product Introduction

The CASTORONE is the largest pipe lay vessel in the world Length overall:325m Porpulsion: 56,000kW The ship is equipped with a Dynamic Positioning 3 (DP3) system It can operate in water of up to 3,000m water depth and suitable for both deep and shallow

Fadein

Flexible Fall Pipe Vessel Stornes >

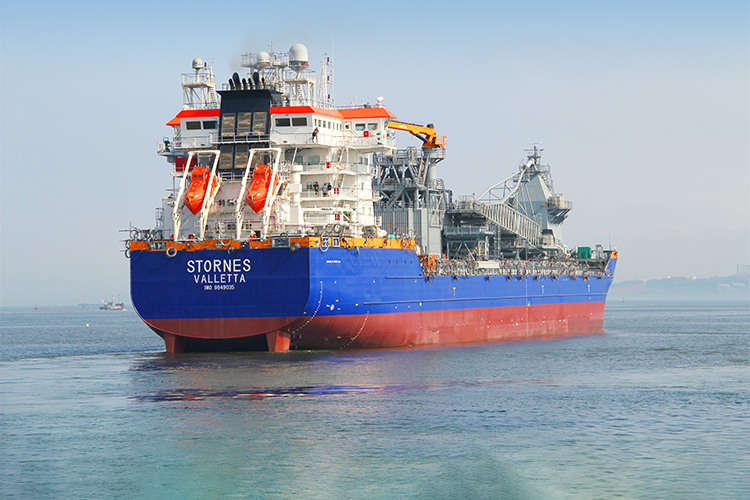

Flexible Fall Pipe Vessel Stornes

Product Introduction

The vessel mainly functions for underwater pipe laying operations, besides serving as an efficient self-unloading bulk carrier with self-unloading capacity of 3000mt (2,500 m3) per hour, It can be operated in any sea area around the world and use the Suez

Main Particulars

Length of Overall	175m
Breadth	26m
Depth	14.5m
Design Draft	9m
Speed	14Knots
Accommodation	52men
Endurance ability	30days
Main Engine	2x4000ekW
DP Class	DP2
Working water depth	1200m
Owner	Van Oord
Class	ABS

Fadein 30,000DWT Self-unloading Bulk Carrier Ve.. >

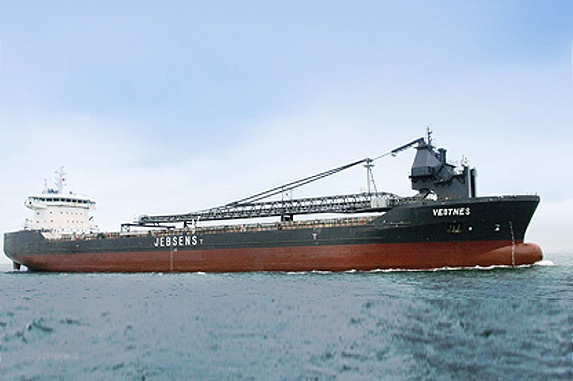

30,000DWT Self-unloading Bulk Carrier Vestnes OC AGGNS

Product Introduction

The Vestnes was designed and built for Jebsens Management AS. Theoretical weight is 30,000t. It features a world class hydraulic self-unloading system at 3,000mt ( 2,500 m3) per hour for transporting cargo, such as coal, stone and grain etc. Vestnes is th
Fadein 50000ton Heavy Lift Semisub Vessel >

50000ton Heavy Lift Semisub Vessel

Product Introduction

Two 50,000 Semisubmersible Heavy-lift Vessel, "United Faith 01 " and? "United Faith 02 ", have a length of 216 meters, width of 43 meters and depth of 13.35 meters. With designed draft of 10 meters, designed to be submersed Max.26.35 meters and desig

Main Particulars

Length Overall 216m

Breadth 43m

Depth 13.35m

Design Draft 10m

submersed Max. 26.35m

DP Class DP2

Speed 13Knots

Class ABS
Fadein Yacht Transportation Vessel >

Yacht Transportation Vessel

Product Introduction

The yacht transport vessel “Yacht Express” was built for the Dutch company Dockwise. It has a total length of 209.03 meters and a width of 32.2 meters. Class by DNV and delivered in 2007.

Fadein

Semi-submersible Crane and Accommodation.. >

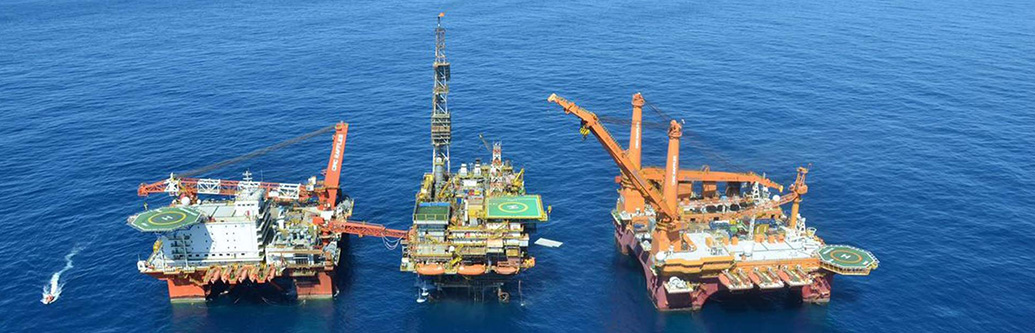

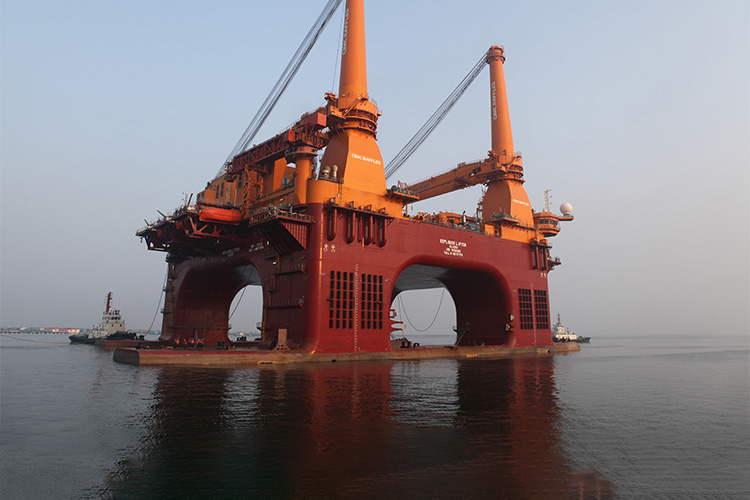

Semi-submersible Crane and Accommodation Unit

Product Introduction

The OOS Gretha is a semi-submersible crane accommodation vessel (SSCV). It was designed and built by CIMC Raffles, who owns the complete intellectual property. The OOS Gretha is 137.5meters in length overall, 81meters in breadth, 39 meters in depth(base

Main Particulars

Length Overall	137.75m
Breadth	81m
Height to Main Deck	39m
Operating Draft	20m
Survival Draft	17m
Transit Draft	11.28m
VDL(Operational)	6,444mt
Accommodation	618men
Helideck	EH101 Helicopter
DP class	DP3
Endurance ability	30days
Main Machinery
Main Genset	8x3,860 ekW
Thrusters	6x3,800ekW
Deck Crane	2x40 mt
Main Crane	2x1,800 mt

Fadein OOS Tiradentes >

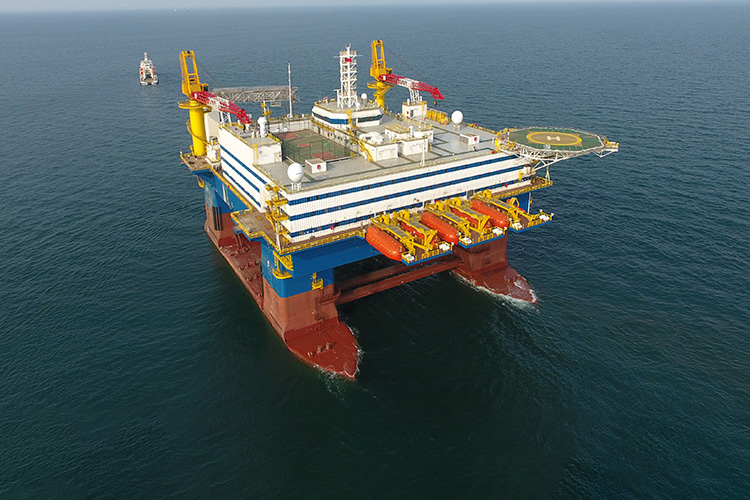

OOS Tiradentes

Product Introduction

OOS Tiradentes is a high end accommodation semi-sub with capacity for 600 personnel. Wholly designed and built by CIMC Raffles, CIMC Raffles owns 100% of the intellectual property. Classed by ABS and designed to meet the requirements of working in deepwat

Main Particulars:

Length Overall 106.45m

Breadth 68.9m

Main deck height 36.25m

Deck Area 3500㎡

Speed 11Knots

Accommodation 600men

Class ABS
Fadein Super M2 Elevating Support Vessel GUARDI.. >

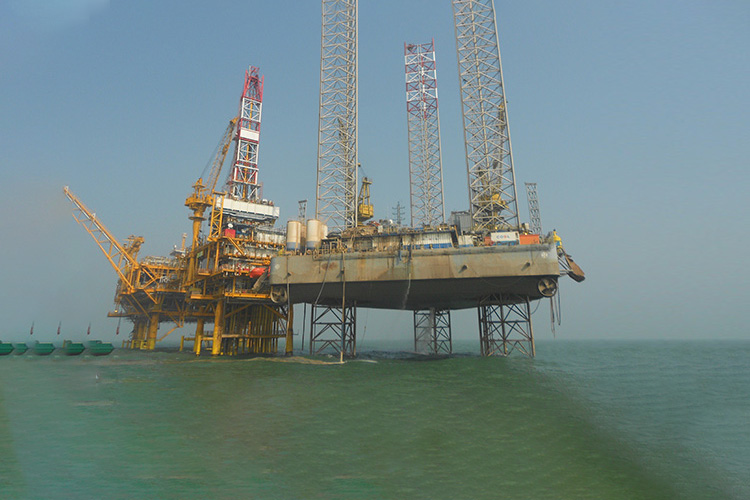

Super M2 Elevating Support Vessel GUARDIAN

Product Introduction

The Super M2 elevating support vessel is a brand new design in offshore industry. It is designed and built for large oil well operations, such as continuous tube drilling, oil well stimulation and small oil fields development. The Super M2 is a multi-purp

Main Particulars

Length Overall 59.745m

Breadth 55.78m

Depth 7.62m

Transit Draft 5.5m

No. of Legs 3

Main Engines 3 x 2,485ekW

Class ABS
Fadein Accommodation Barge African Caribe >

Accommodation Barge African Caribe

Product Introduction

This vessel is built for Marine Subsea AS. Total length 102m, accommodation capacity for 300. Classed by ABS and delivered in 2008.
Fadein 93m platform Support Vessels >

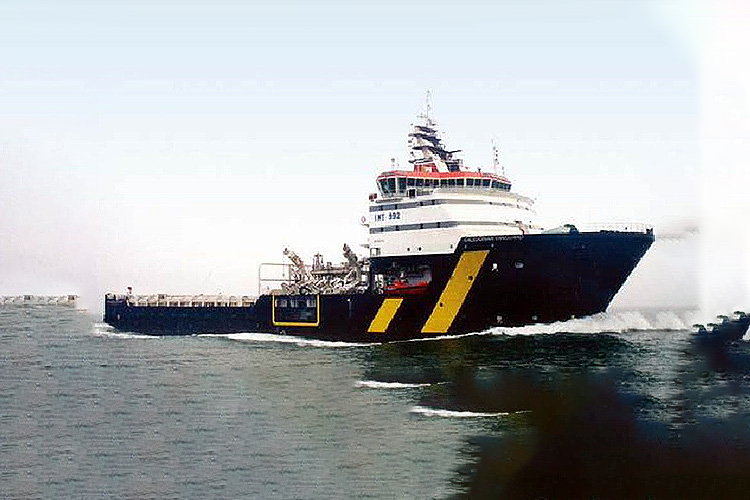

93m platform Support Vessels

Product Introduction

This vessel is a regional support vessel platform support vessel built for British Petroleum Company. It was designed by OSD-IMT Ltd, UK (Offshore Ship Designers). Each of these vessels uses diesel-electric propulsion systems, and is equipped with 2 x 3,0
Fadein 3,800T Heavy Derrick/Pipelay Barge Lan J.. >

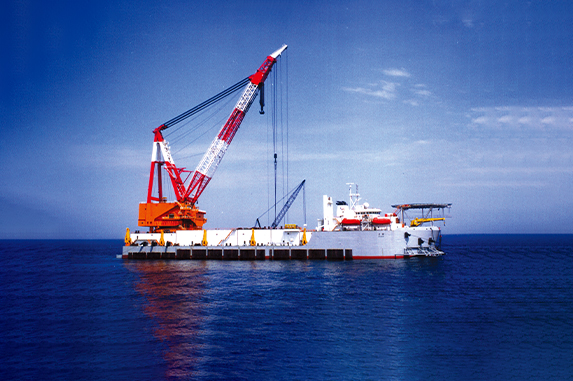

3,800T Heavy Derrick/Pipelay Barge Lan Jiang

Product Introduction

The Lan Jiang is a barge built for China National Offshore Oil Corporation (CNOOC) with 2 functions (3,800mt AmClyde heavy derrick crane, and submarine pipe laying function). Displacement is 51,241mt. The Lan Jiang’s crane can be used to hoist modules (f
